smartKEYS. Every key shows what it does.



smartKEYS. Every key shows what it does.

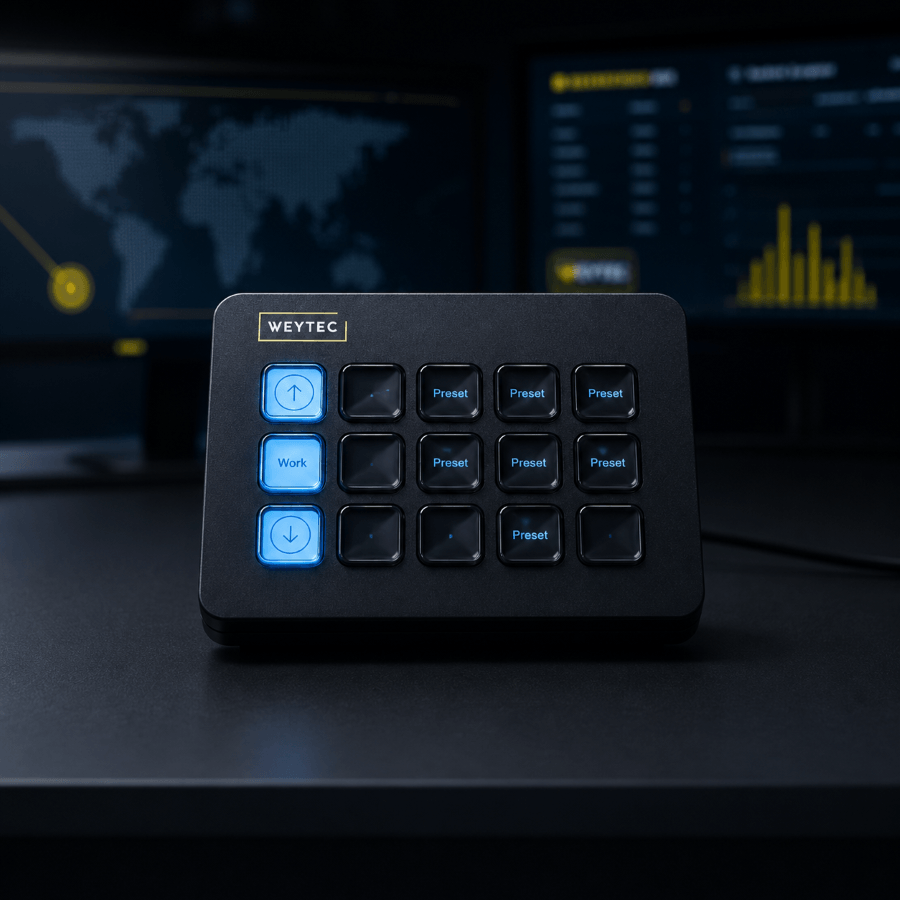

The programmable keypad for operator workplaces. smartKEYS is a keypad with 15 LCD keys that puts complete workflows on single keys and runs in all WEYTEC platforms.



Produktebild_smartKEYS_opt

Seconds decide. So do your keys.





In control rooms and trading floors, recurring workflows live in menus or on keys with fixed labels. Menus cover the live picture. Fixed keys do not show what they trigger. smartKEYS solves both.



Without smartKEYS



Every switch costs clicks and seconds.
The eyes leave the live picture.

Searching in menues takes time.

Under pressure, steps turn into errors.

With smartKEYS



One press starts the complete workflow.
The key shows function and confirmation.

Security through haptic feedback.
The eyes stay on the data.

Three things smartKEYS does differently

Product_picture_smartKEYS_opt

Assign.



You put sources, presets, layouts or macros on single keys. Configuration runs through the WEYTEC oneGUI software.

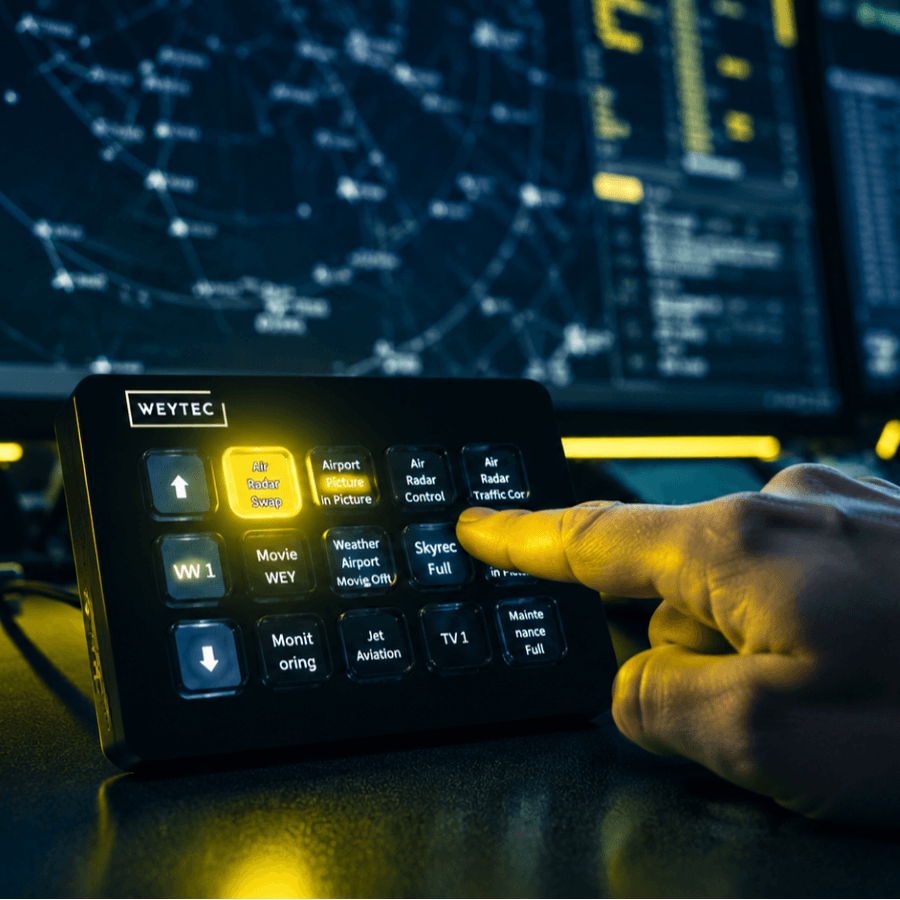

Weytec smartKEYS Product in action

Press.



One press starts the workflow. The key confirms execution with a color highlight, visible and tangible.

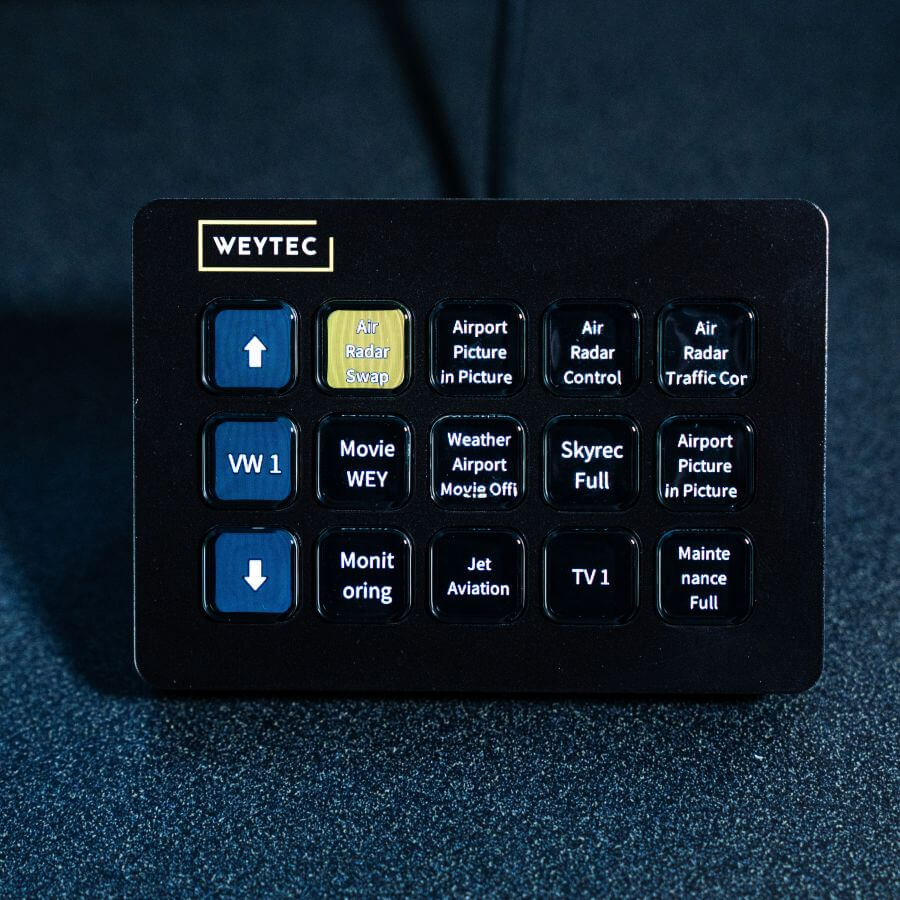

Weytec smartKeys handles on multiple sides

Switch.



Several pages per device. The assignment changes per task, the labels change with it.

smartKEYS in 30 seconds

What smartKEYS does



  • 15 LCD keys
    Every key carries its own display with 72 x 72 pixels for text and icon.
  • Freely assignable
    You define function and display of every key, per workplace and task.
  • Complete workflows
    Source switching, presets, layouts and macros sit on one key.
  • Tangible confirmation
    Physical keys with color feedback, usable without looking.
  • Several pages
    One device covers many tasks, with clear orientation per page.
  • Built for continuous operation
    Designed for 24/7, MTBF 50,000 hours, FCC Class B and CE conform.
Weytec smartKeys product picture

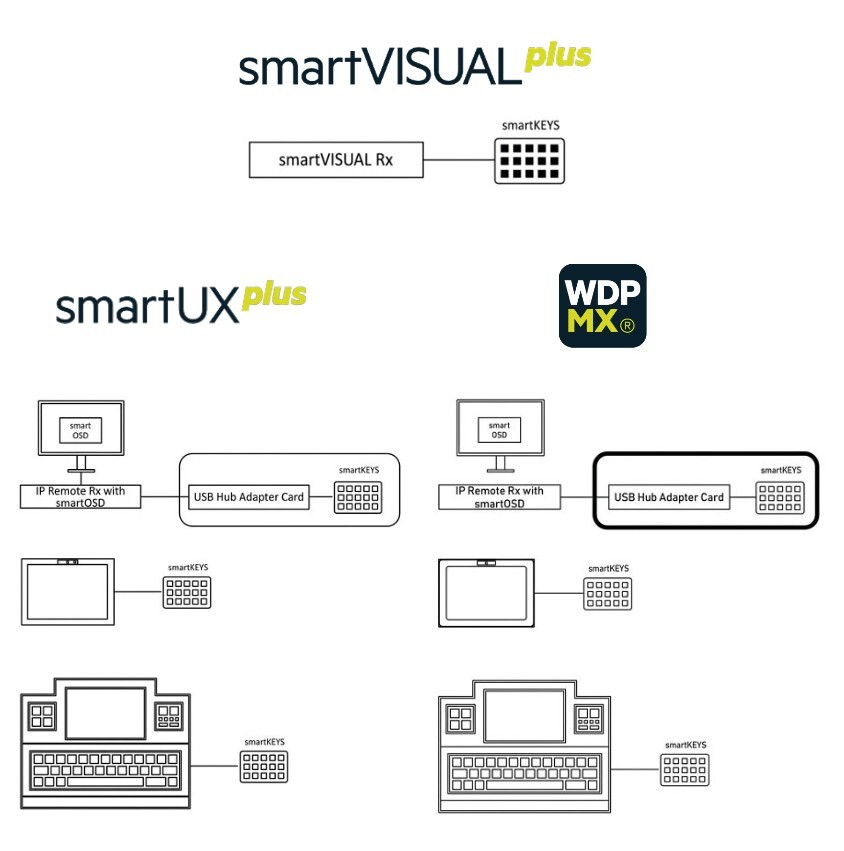

Runs in your WEYTEC system. Including the existing one.


smartKEYS runs in WDP MX® , smartVISUAL plus and smartUX plus. It connects to smartTOUCH keyboard, smartTOUCH Flex, smartOSD and the smartVISUAL Receiver. smartKEYS complements your user interfaces and does not replace them.



Schema_smartKEYS_LP

Retrofit

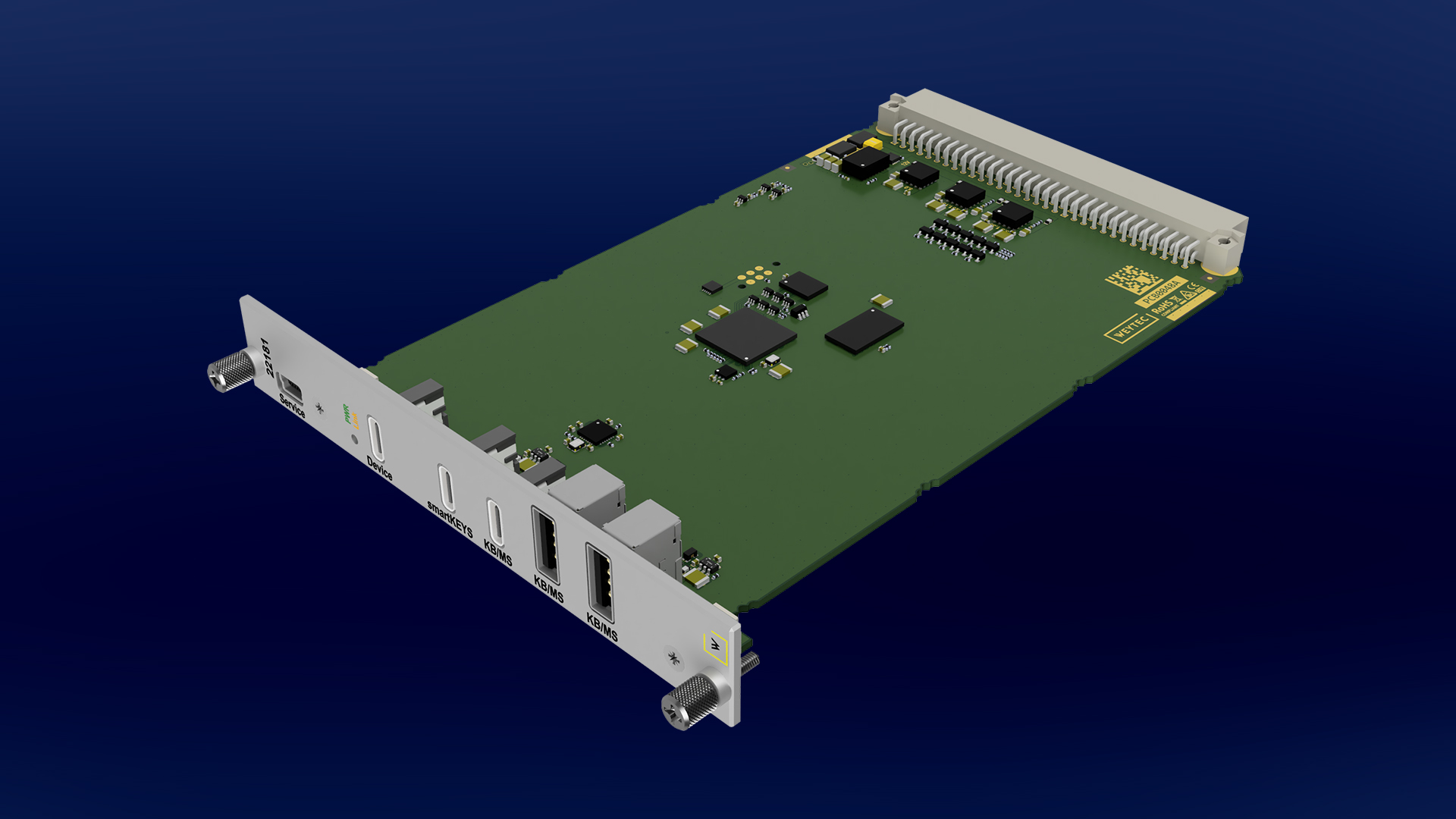

With the USB Hub Adapter Card you connect smartKEYS to existing receivers, down to receiver level. You retrofit workplaces that have run for years, without rebuilding the solution. During predefined workflows the on screen display stays closed, critical data remains visible.

SmartKeys USB Hub Adapter Card

One keypad, many fields of use

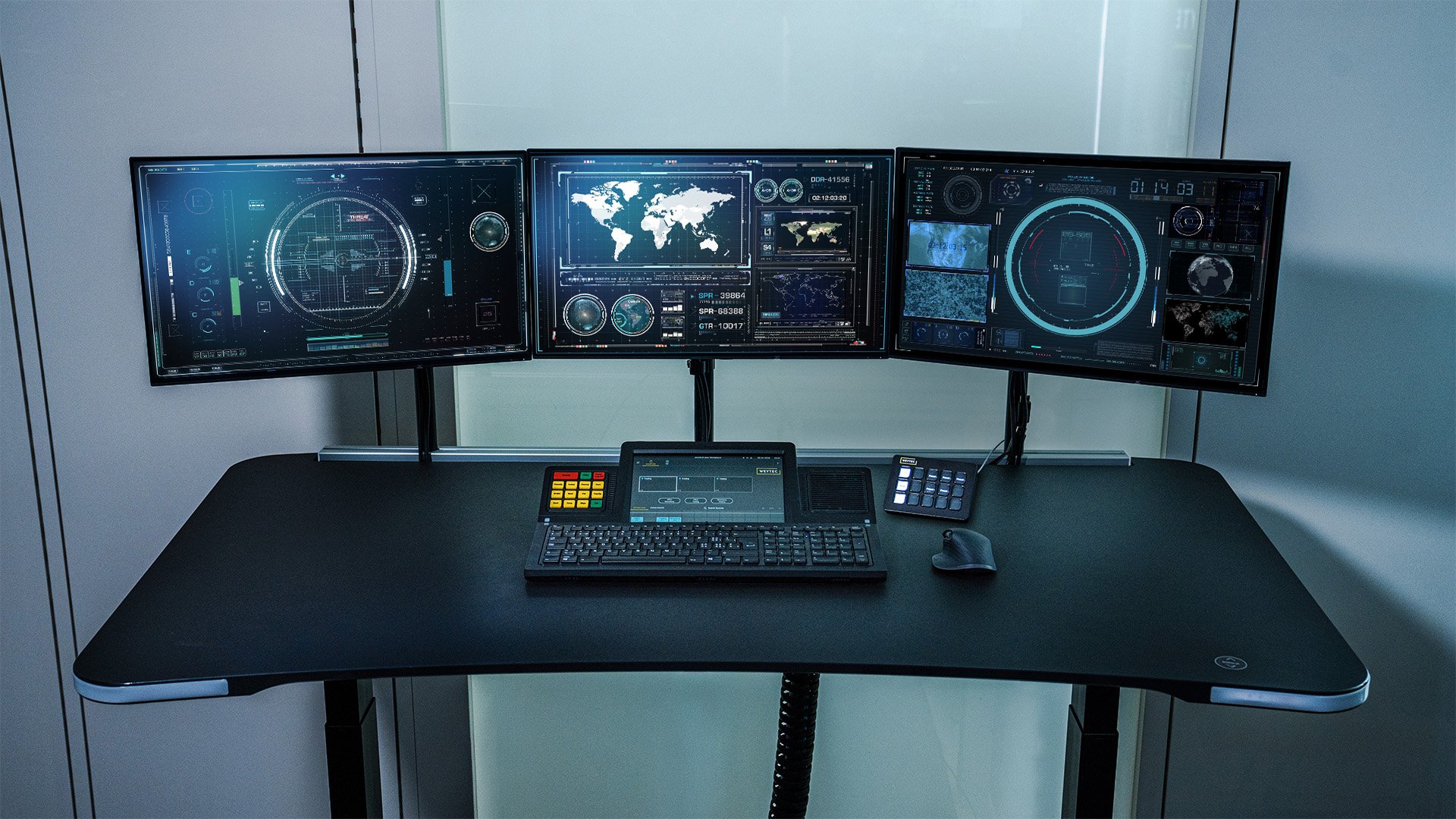

WEYTEC smartKEYS in Airtraffic ATM ATC control rooms

Air traffic control

One key swaps the radar picture, the second brings up the weather, the third switches the video wall to full screen. The operator acts without taking the eyes off the traffic.

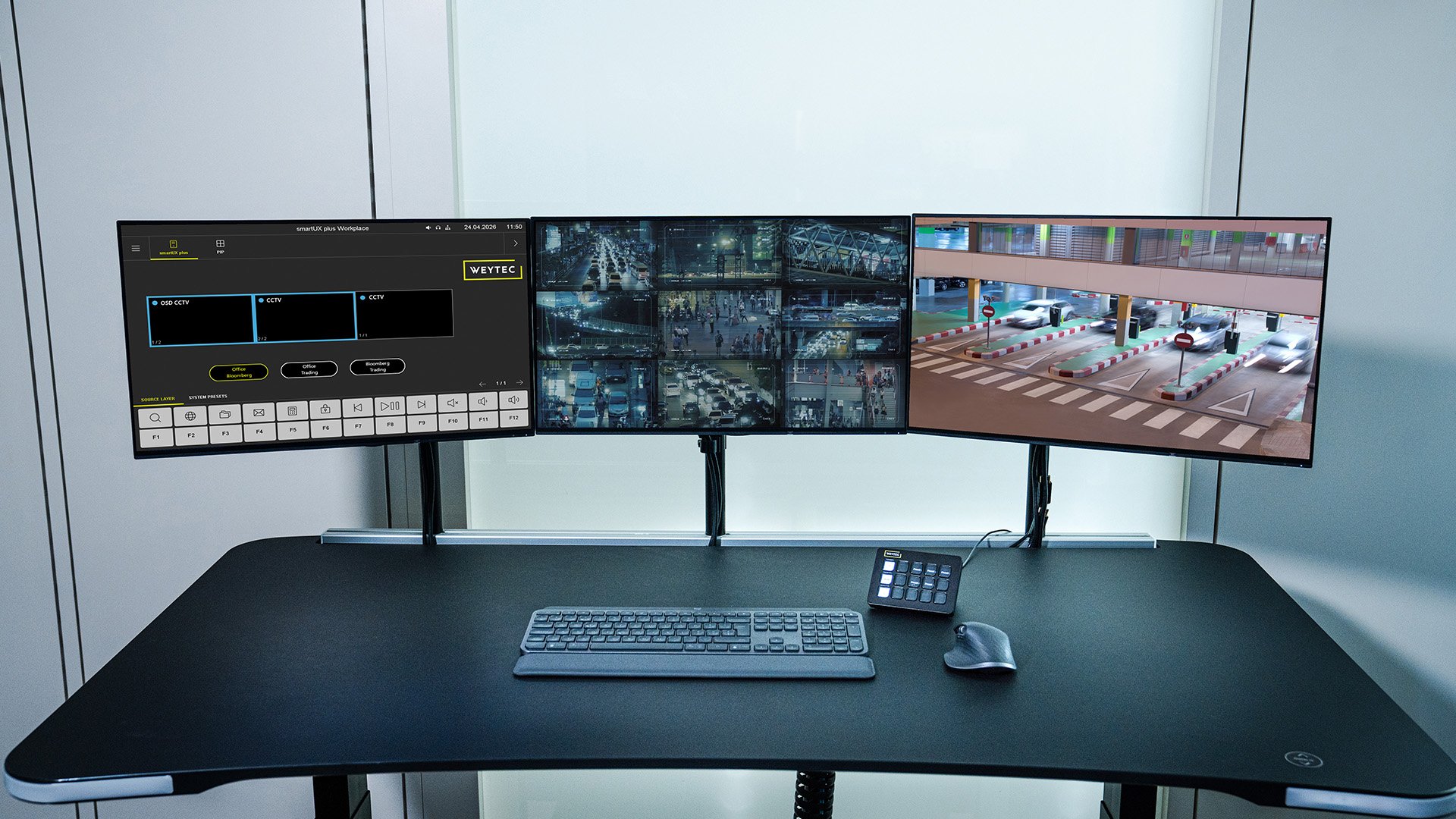

WEYTEC smartKEYS in security sector

Security and surveillance

On an alarm, one key recalls the defined camera layout and puts the relevant sources on the video wall. The workflow stays the same on every shift.

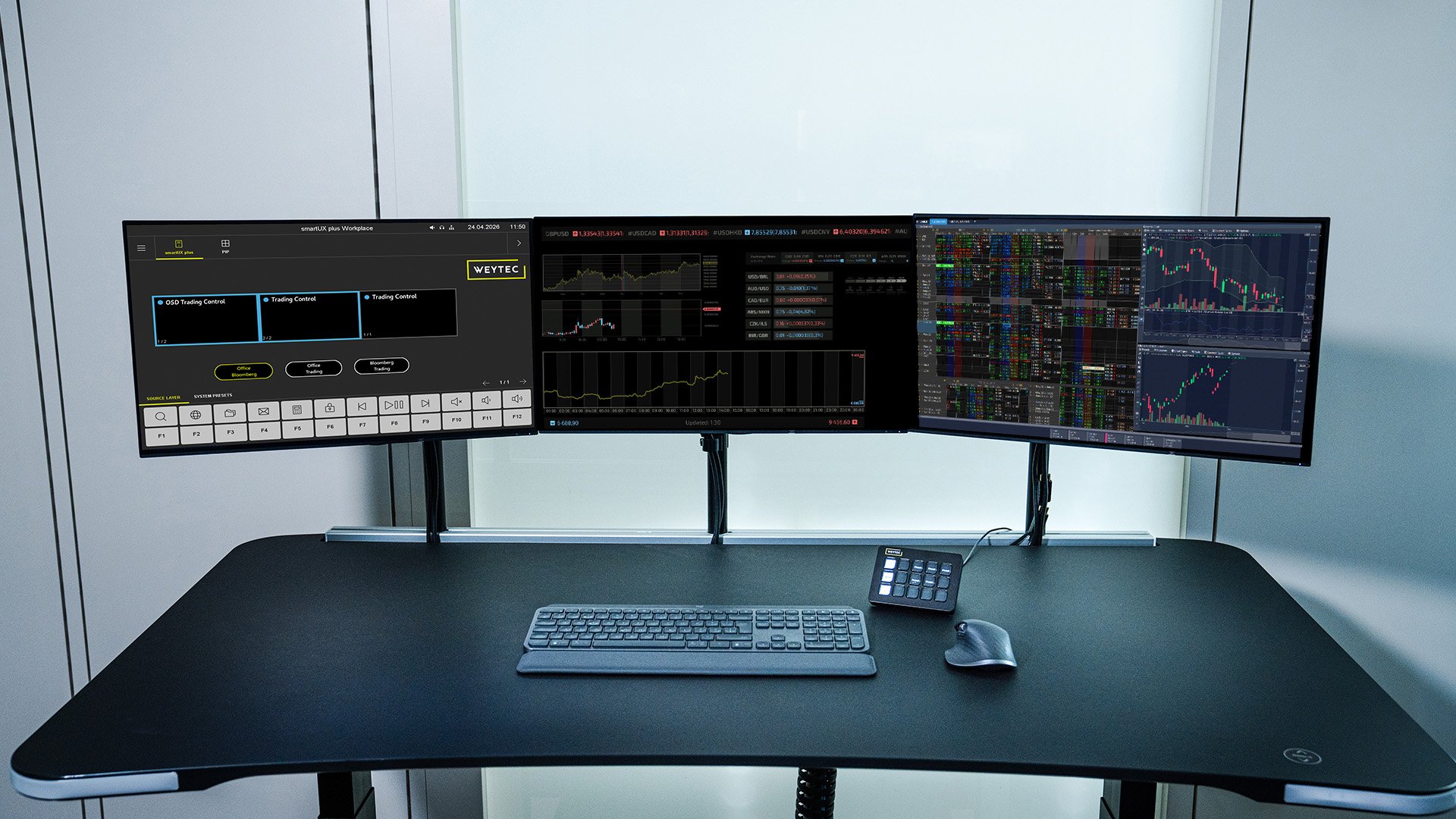

WEYTEC smartKEYS in Trading Floors

Trading floor

Traders switch between market data, trading system and communication with one key. Assignments can be standardised per desk.

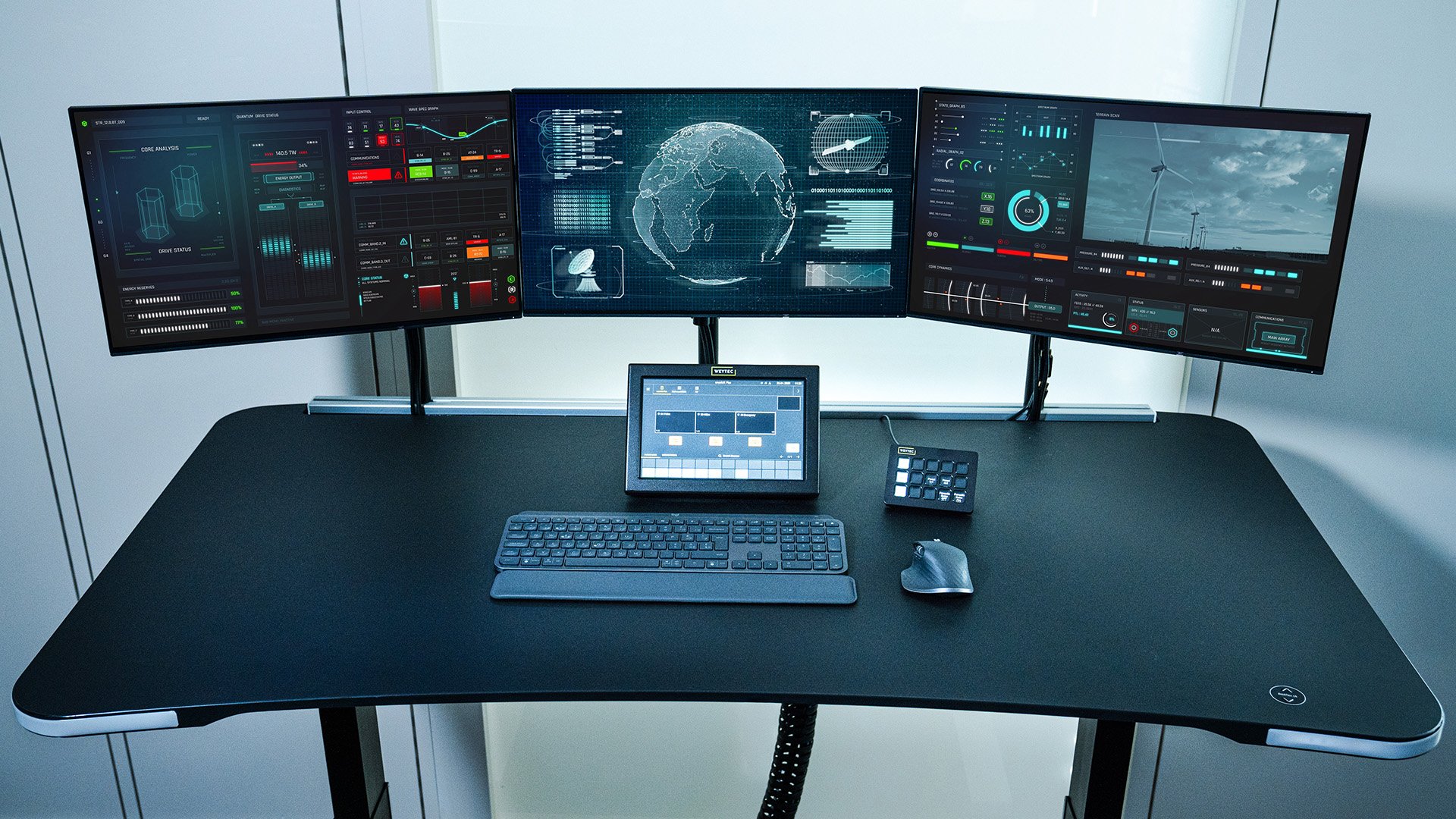

WEYTEC smartKEYS for engery and utilitites workplaces

Energy and utilities

Control centers put switching actions and displays on fixed workflows. New operators work with the same keys as the whole team from day one.

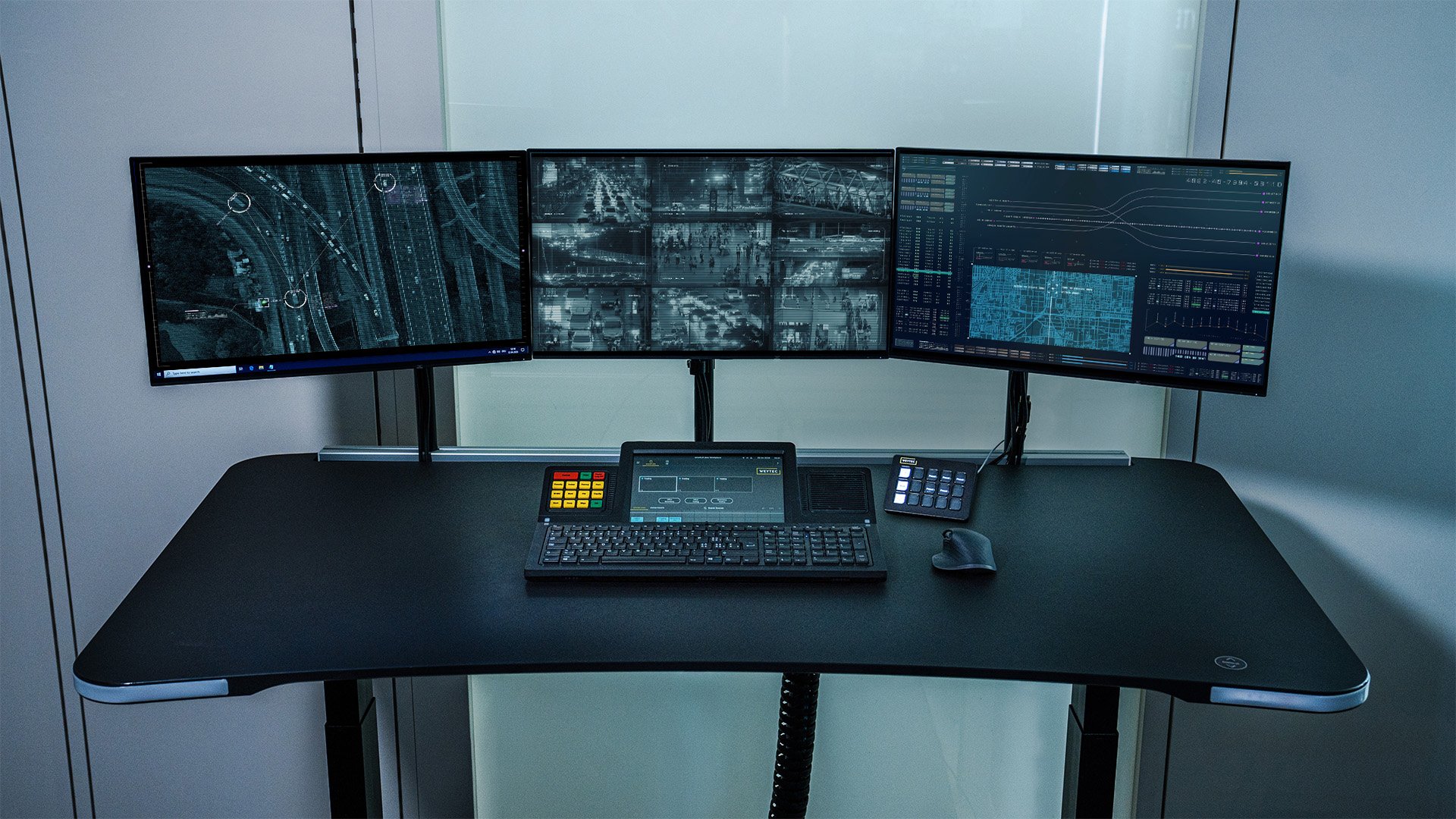

smartKEYS_Transport_new

Traffic and rail

Signal boxes and traffic centers recall situation pictures and camera areas with one key, across several monitors.

Technical data



Property
 Value
Keys
 15 LCD keys per page, 72 x 72 pixels each, several pages
Interface
 USB-C High-Speed
Power supply
 5 V DC via USB, 2.5 W
Dimensions and weight
 118 x 84 x 25 mm, 145 g
Operation
 24/7, MTBF 50,000 hours, indoor use, 8 to 40 degrees C
Conformity
 FCC Class B, CE
Configuration
 WEYTEC oneGUI software, delivered preconfigured
Accessory
 USB Hub Adapter Card (Part No. 22181-MX) for smartOSD systems



Frequently asked questions about smartKEYS



What is smartKEYS?
smartKEYS is a programmable keypad with 15 LCD keys for operator workplaces. Every key shows its function and starts a complete workflow, for example source switching, presets or macros.

Which WEYTEC platforms does smartKEYS run in?
smartKEYS runs in ​WDP MX®, smartVISUAL plus and smartUX plus. It connects to smartTOUCH keyboard, smartTOUCH Flex, smartOSD and the smartVISUAL Receiver.

Can I retrofit existing WEYTEC workplaces?
Yes. With the USB Hub Adapter Card you connect smartKEYS to existing receivers, without rebuilding the solution.

When do I need the USB Hub Adapter Card?
Only for smartOSD systems, meaning IP Remote III, IP Remote IV and IP USB Deskswitch. smartTOUCH keyboard, smartTOUCH Flex and smartVISUAL need no adapter card.

Does smartKEYS replace the smartTOUCH keyboard?
No. smartKEYS complements your user interfaces. The smartTOUCH keyboard remains the multifunctional control unit, smartKEYS speeds up recurring workflows.

How is smartKEYS configured?
Through the WEYTEC oneGUI software. Devices ship preconfigured, you adapt assignments per workplace.

Is smartKEYS suitable for continuous operation?
Yes. smartKEYS is designed for round the clock operation with an MTBF of 50,000 hours.


See smartKEYS at your workplace



Talk to us about your control room or trading floor and experience smartKEYS live at the WEYTEC Experience Center.
